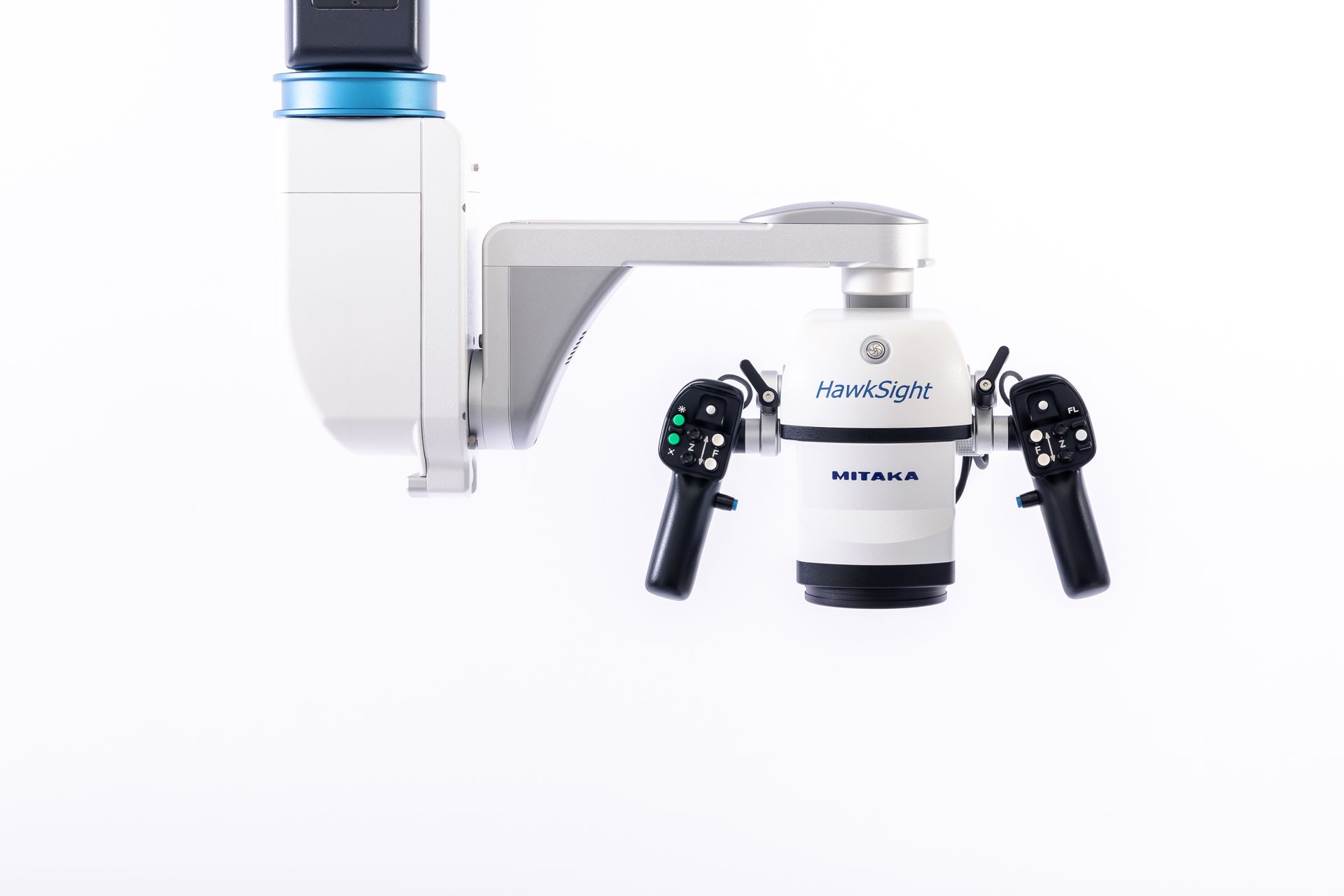

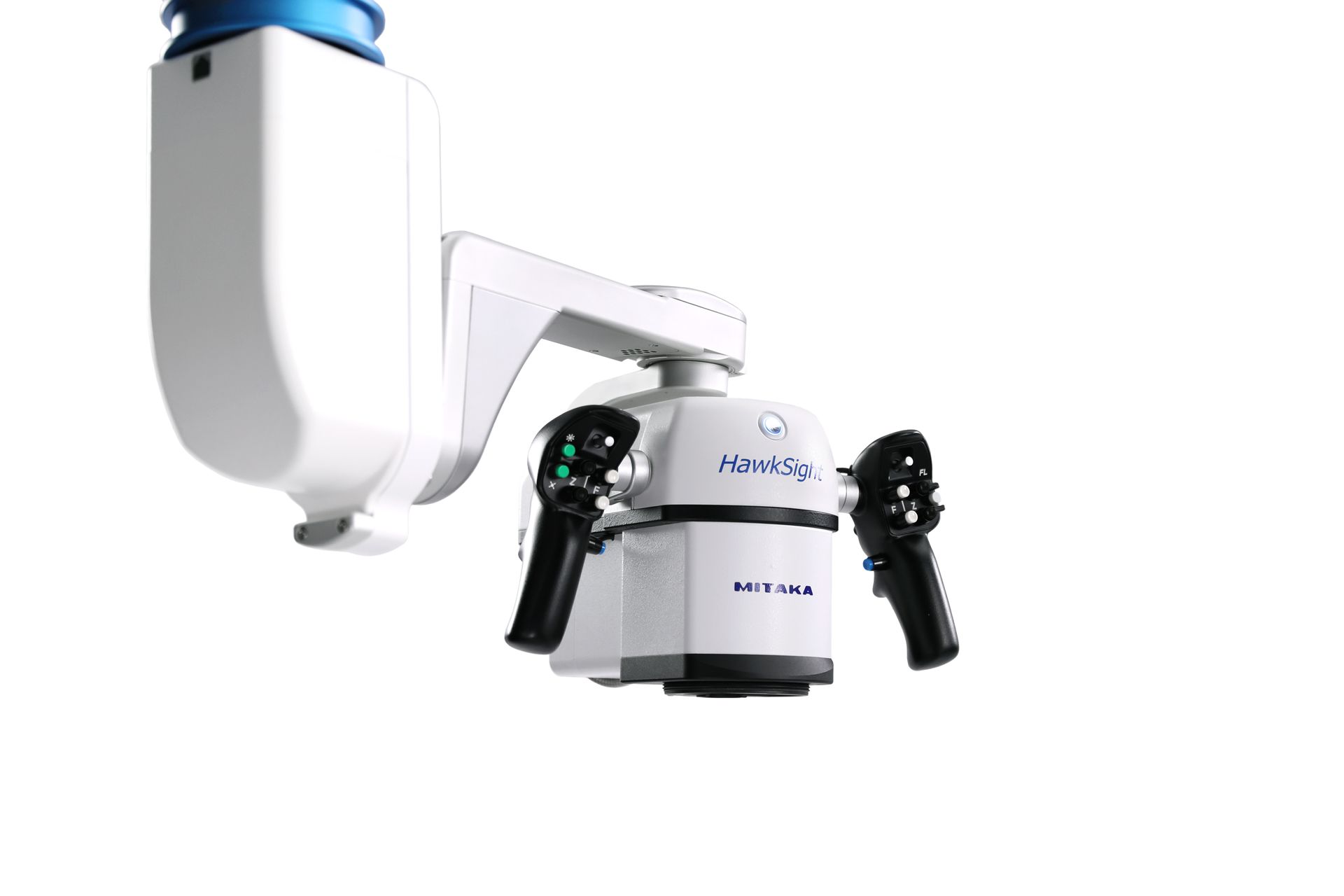

Mitaka HawkSight 4K3D Video Microscope

The one and only 8-sensor 4K3D Video Surgical Microscope with unparalleled working distance, unprecedented magnification and unbeatable red colour representation.

"Exoscope done right".

High magnification made possible with the Video Microscope

The 8:1 optical zoom ratio guarantees a range of magnification of a specific area of the operating field without loss of quality or resolution. The guiding laser supports instantaneous focusing, facilitated by the autofocus. The HawkSight optical system achieves the maximum magnification of an uncompromising 110x (with WD 200 mm on a 55" monitor). The field of view is illuminated by an ultra-bright and durable LED light.

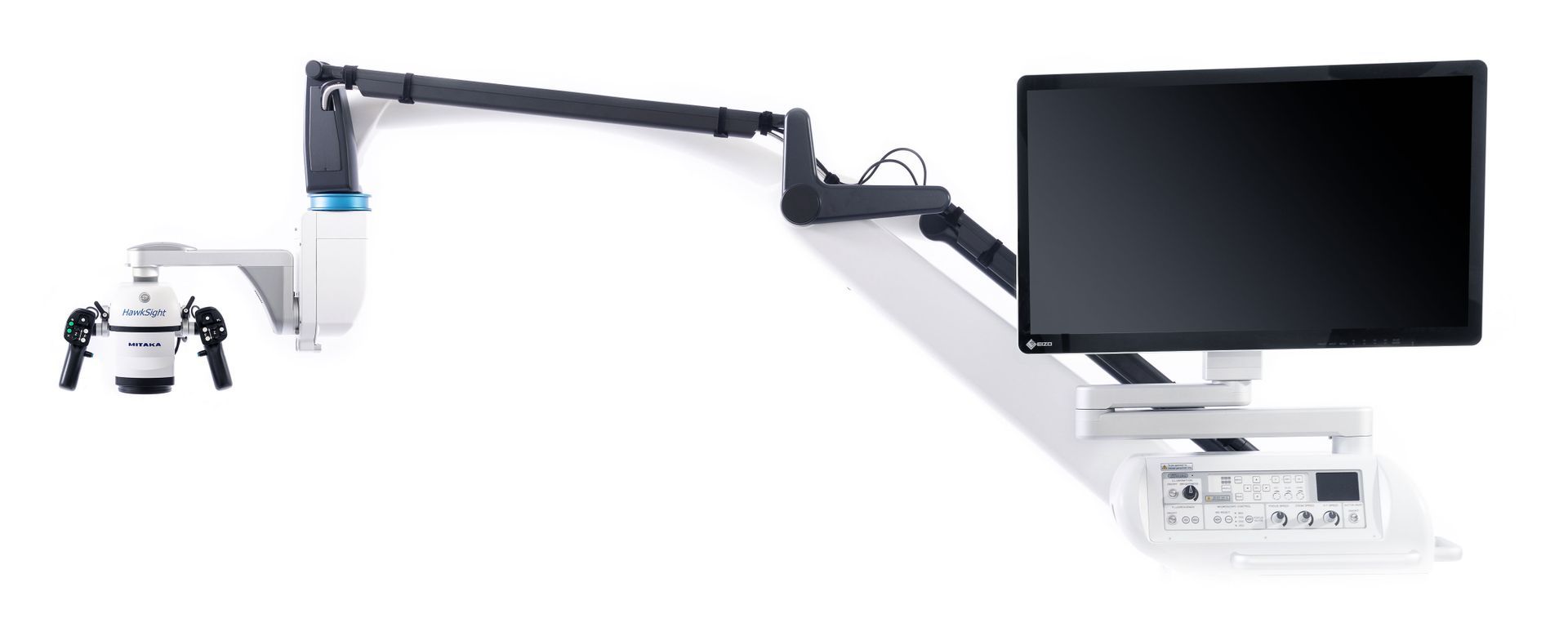

Based on proven surgical microscope principles

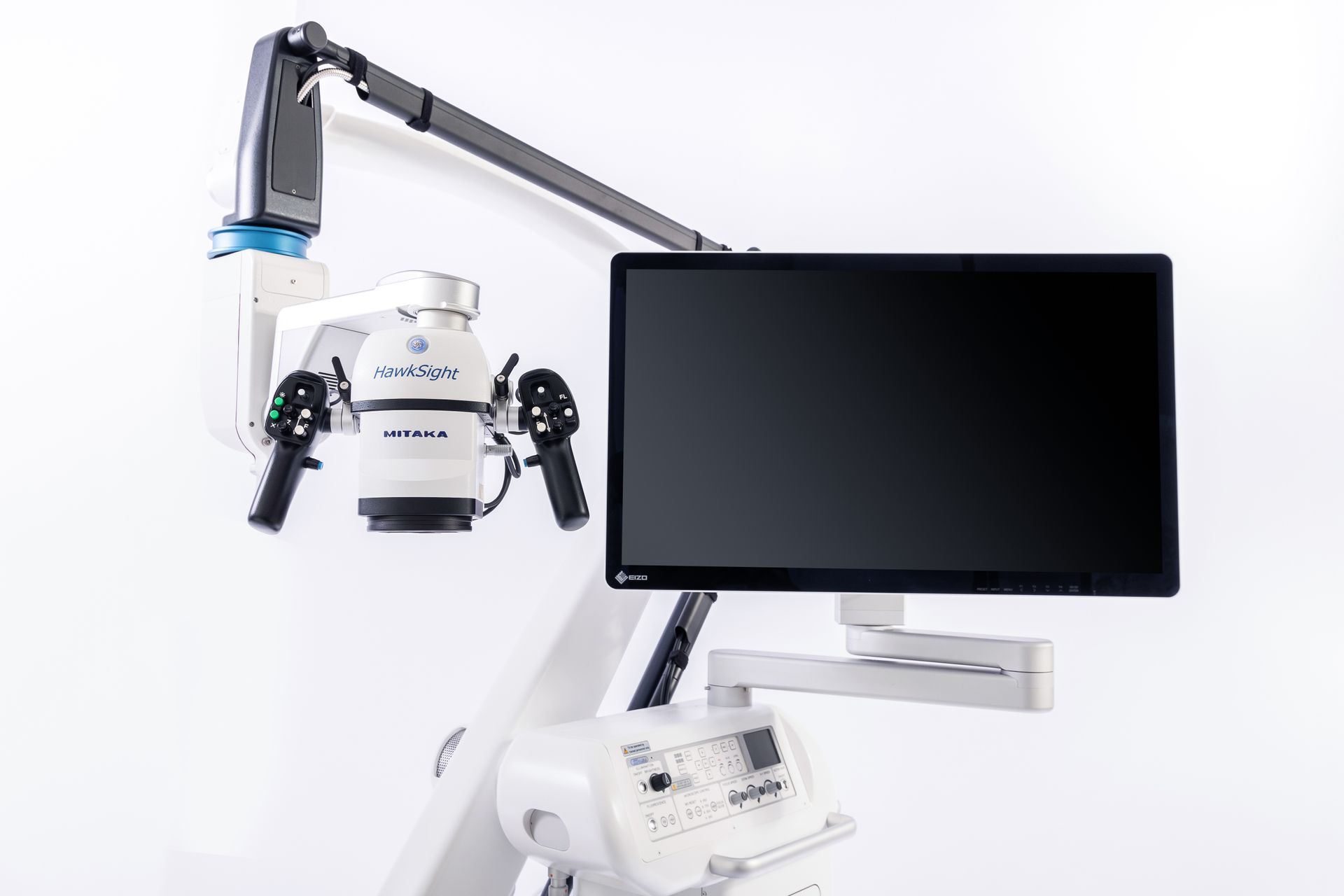

HawkSight is built on a fully functional microscope stand with the legendary Mitaka Kohki counterbalance overhead design. The unique shape of the arm allows approaches to be taken from different angles. The unprecedented range of the working distance means the head can be positioned from 100 cm above the operating field to 20 cm. The shortest distance is useful when the highest magnification and resolution are needed for the most demanding deep-cavity access.

Unparalleled Working Distance of 200 - 1000 mm

Unique feature of HawkSight

Bird's-eye view

HawkSight has the largest Working Distance of any surgical microscope, ranging from 20 cm up to 100 cm.

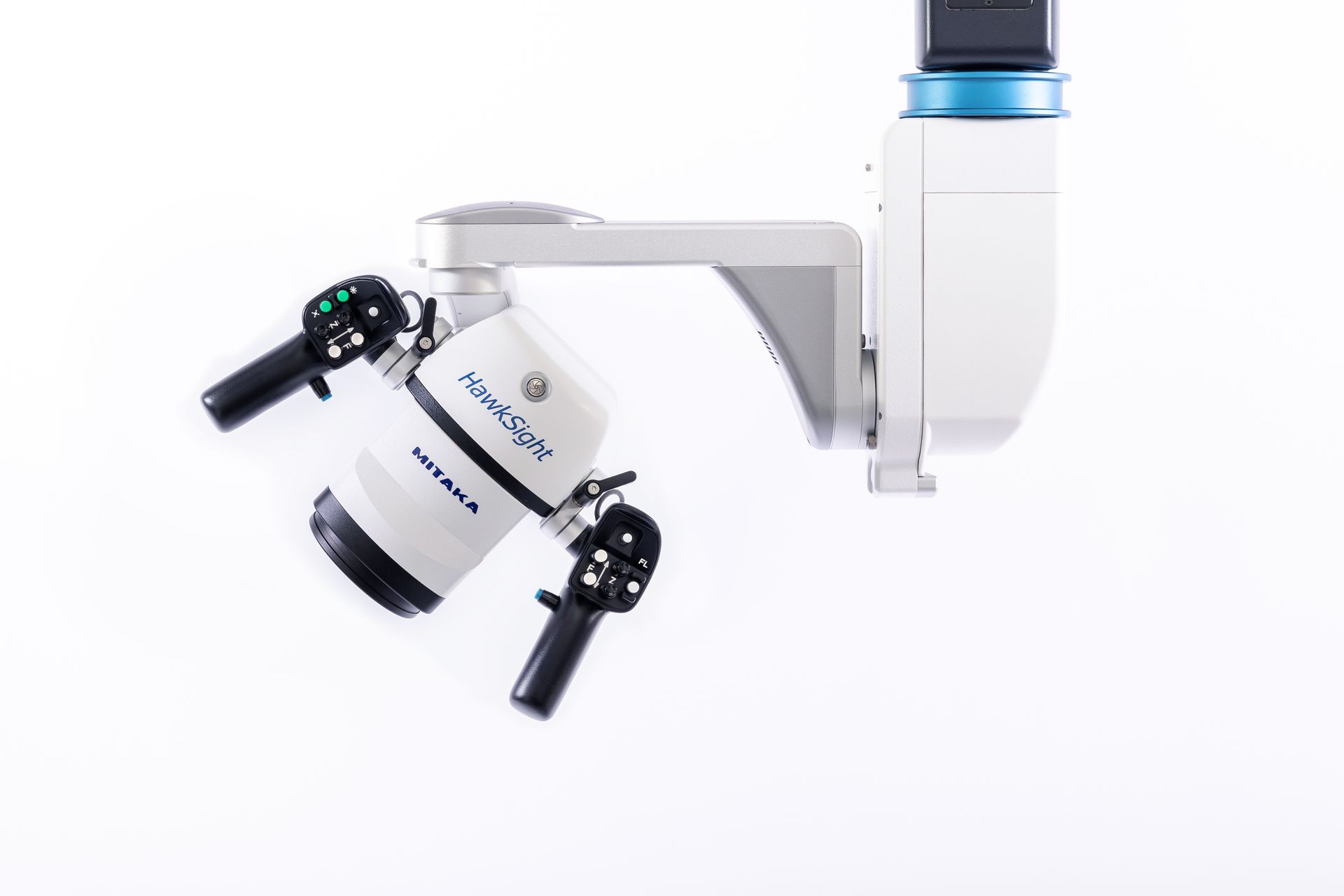

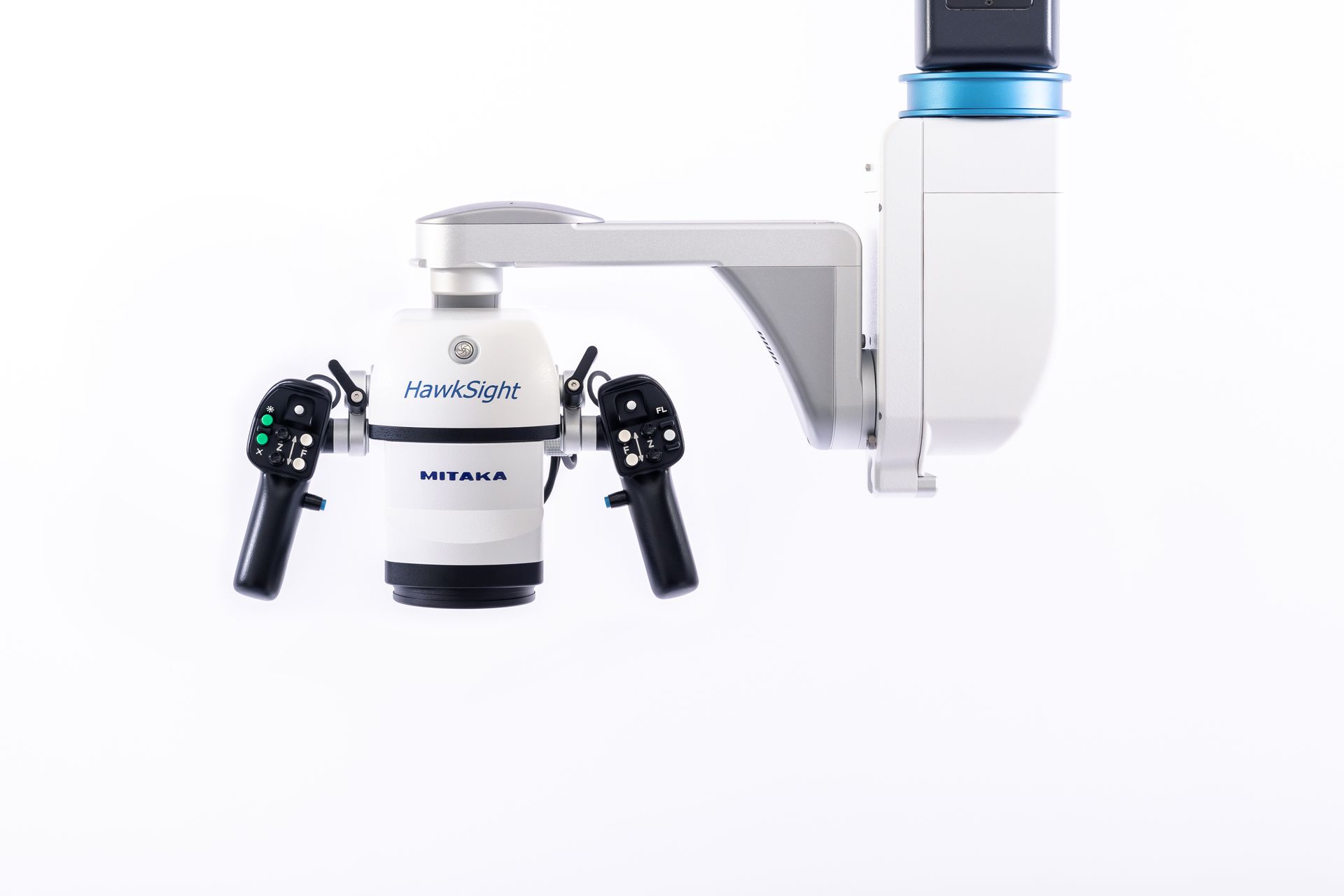

Offset arm

When working in deep cavities, the head can be moved to achieve the highest resolution at a magnification of up to 110x. The unique offset arm allows the image to be clearly visualised from a range of angles.

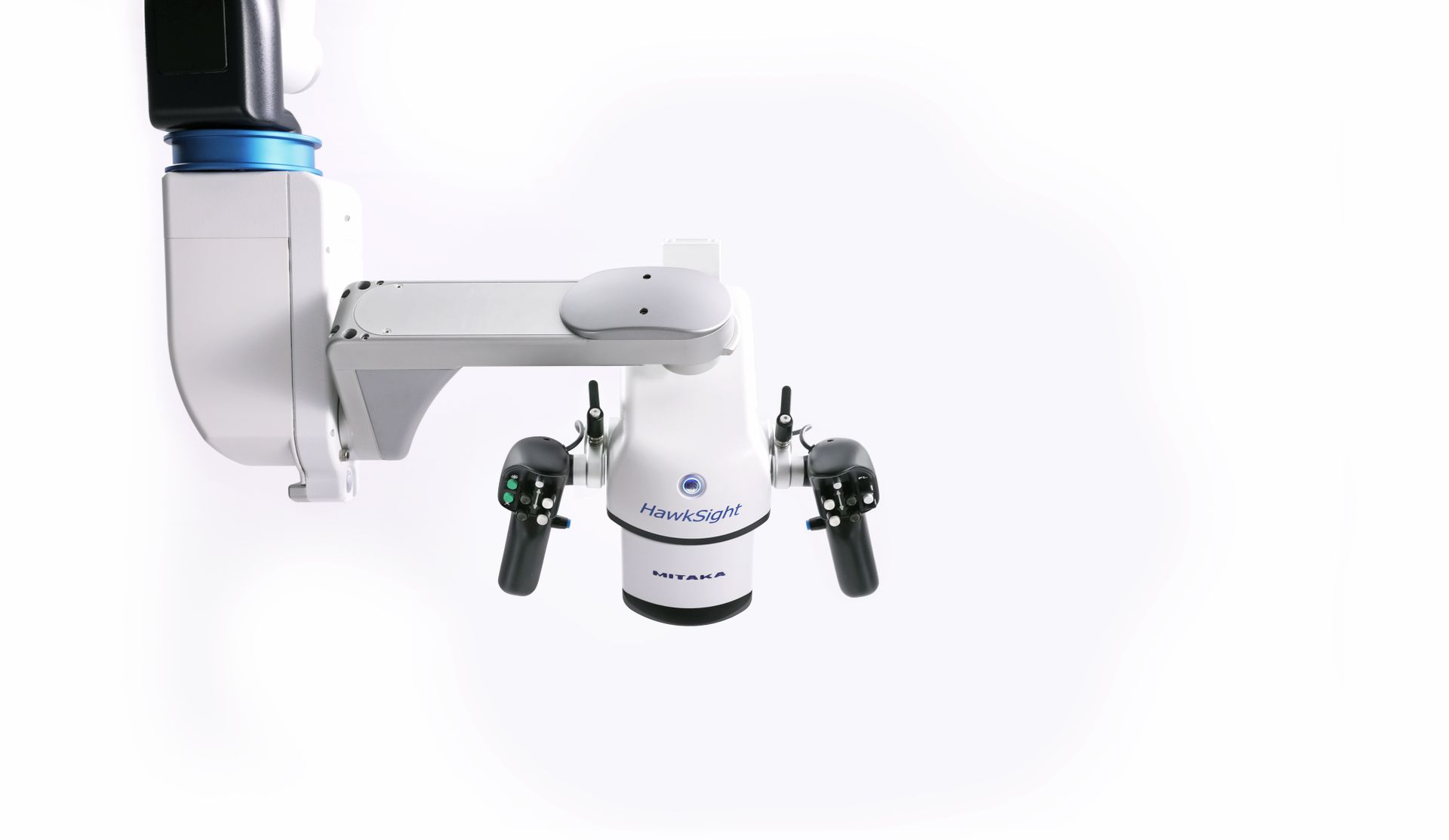

8-sensor

2x4K camera

True heart of a digital microscope

The dual 4-sensor camera specially developed for the HawkSight Video Microscope gives the highest native resolution of 4K3D.

We paid extra attention in addressing the common red colour issue. A dedicated prism enables the sensor to precisely pick up the dynamic range of red, thus visualising all the primary and secondary steps of red. This results in realistic anatomy imaging without the loss of clinically relevant details.

Versatile zoom ratio

HawkSight has a motorised 8:1 zoom,

giving a versatile range of

magnification of a specific area

without changing the WD or causing

disorientation.

Optical magnification

The 4K3D Video Microscope achieves

high resolution thanks to its specially

designed, optical zoom system, which has

a maximum achievable magnification of

110x (at WD 200 mm with a 55" monitor).

WD setup made easy

Due to the incomparably wide range

of focal lengths, HawkSight has an

autofocus function that quickly adapts

the Working Distance needed by the

surgeon.

New Paragraph

More than the exoscope. Three fluorescence modes.

This microscope system is the first in the world to enable the simultaneous observation of visible and NIR light with one camera. Invisible light wavelengths reaching the ultra-sensitive sensors are precisely filtered by dedicated prisms and amplified, so that a low-noise NIR image can be presented or superimposed over the visible light image. Bright 4K3D images are available for all modes.

ICG Fluorescence

ICG / visible overlay

5-ALA fluorescence

Focal depth adjustment

As the magification and resolution increase, it may be necessary to widen the depth of focus. With one button push, you can narrow the light iris to increase the focal depth.

Polarisation filter

In addition to the anti-flicker algorithm, the camera incorporates a manual switchover polarising filter to quickly get rid of light reflections from instruments or other solid or liquid structures.

Hands-free micromovements

Motorised XY-tilting of the microscope head is available via a hand grip and foot switch. Foot control allows for remote micromovements of the image axis and fine adjustment of the field of view.
